Raymarine YachtSense Modular Digital Control System
Each YachtSense Digital Control System is built upon a fully customized user experience. Bespoke user interface options deliver a modern and elegant vessel automation solution. Captains can monitor mechanical systems and take control of the vessel amenities right from the helm.
From checking on generator status to setting saloon lighting for the evening. YachtSense provides effortless control allowing the captain and crew to focus on getting underway and enjoying the open water.
Raymarine YachtSense Modular Digital Control System

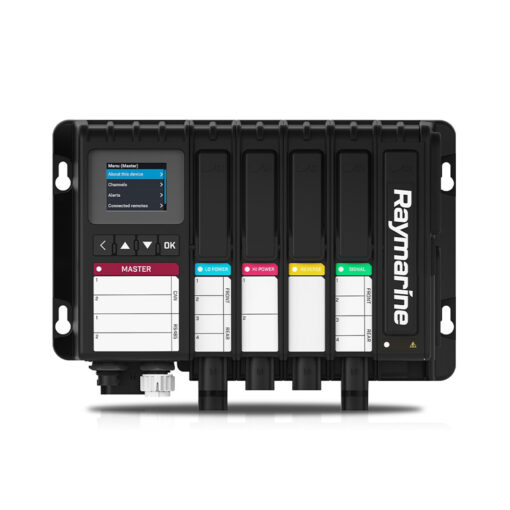

YachtSense is a unique modular system architecture that gives boat builders the freedom to design and standardize on a digital control solution that can scale across an entire model range.
The Low Power Module
The Low Power Module is a digital output module and can be used to drive lower powered electrical loads such as lights, wiper motors and other electronic devices. Supports up to 4 devices.
The High Power Module
The High Power Module is a digital output module and can be used to drive high powered electrical loads such as pumps, fans, heaters, refrigerators and Hi-Fi equipment etc. Supports up to 2 devices.The Reverse Power Module
The Reverse Module provides control over 1x DC circuit that can reverse its polarity. It is ideal for motion control applications of hydraulic pumps, actuators, sunroofs, sunshades, and electric windows.
The Signal Module
The Signal Module provides a connection to up to 4 input signals. These can be used to monitor tank levels, battery voltages, temperatures, switches or a variety of other sensors. Any of these 4 channels can also be used as a low current output signal to control other electronic devices or relays.The Power Supply Module
Point of connection for DC power and completes the stack of modules. Power Supply Modules provide all the other modules with a connection to the boats power supply. Protects all connected circuits from transient voltages and reverse polarity connection.
Engineered for the unexpected
YachtSense systems are built to Raymarine's demanding standards. Three layers of redundancy gives captains peace of mind. An integrated keypad allows for manual override, and the LCD provides system diagnostics. Rugged IPX6 enclosures and backed by a 3-year warranty.TECHNICAL DETAILS
- The Master Module is required for all installation scenarios and is supplied with a power supply module.
- The Master Module can be controlled using a networked Multifunction display (MFD).
- The Master Module is connected to Remote modules via a connection to a SeaTalkng® backbone.
- The Master Module includes 2 x J19319 connections, 2 x RS–485 connections
Model | Raymarine YachtSense Master Module |
Power Specifications | |
Nominal supply voltage: | 12 Vdc / 24 Vdc |
Operating voltage range: | 8 Vdc to 32 Vdc |
Data Connections | |
Network (control): | 1x RayNet type SeaTalkhs™ connector 10 / 100 / 1,000 Mbits/s |
SeaTalkng® / NMEA 2000: | 1x SeaTalkng® connector |
CANBUS / Serial: | 2x J1939 connections via 16–pin Molex MX150L connector 2x RS-485 connections via 16–pin Molex MX150 connector |
Physical | |
Module Dimensions: H/W/D (not including busbars): | 165mm (6.50 in) x 81.00mm (3.19 in) x 75.50mm (2.97 in) |
Weight: | 0.37Kg (0.78 lb) |
- Remote Modules are supplied with a power supply module.
- Remote Modules include 8 x digital or analog input / output channels.
- Remote Modules are connected to a Master Module via a connection to a SeaTalkng® backbone.
Model | Raymarine YachtSense Remote Module |
Power Specifications | |
Nominal supply voltage: | 12 Vdc / 24 Vdc |
Operating voltage range: | 8 Vdc to 32 Vdc |
Module current draw: | 250 mA |
Maximum output current: | 2A (250 mA per channel) |
Data Connections | |
SeaTalkng® / NMEA 2000: | 1x SeaTalkng® connector |
Input / output connections | 8 Channels 0-32V/4-20mA/0-1500Ohm/Digital+/Digital- Input or up to 250mA signal Output |
Physical | |
Module Dimensions: H/W/D (not including busbars): | 165mm (6.50 in) x 81.00mm (3.19 in) x 75.50mm (2.97 in) |
Weight: | 0.35Kg (0.77 lb) |
- The Low Power Module provides 4 x 10 A output channels.
Model | Raymarine YachtSense Low Power Module |
Power Specifications | |
Nominal supply voltage: | 12 Vdc / 24 Vdc |
Operating voltage range: | 8 Vdc to 32 Vdc |
Maximum output current: | 40 A (10 A per channel) |
Physical | |
Module Dimensions: H/W/D (not including busbars): | 172mm (6.77 in) x 28.00mm (1.10 in) x 76.50mm (3.01 in) |
Weight: | 0.27Kg (0.60 lb) |
- The High Power Module provides 2 x 20 A output channels.
Model | Raymarine YachtSense High Power Module |
Power Specifications | |
Nominal supply voltage: | 12 Vdc / 24 Vdc |
Operating voltage range: | 8 Vdc to 32 Vdc |
Maximum output current: | 40 A (20 A per channel) |
Physical | |
Module Dimensions: H/W/D (not including busbars): | 160mm (6.30 in) x 28.00mm (1.10 in) x 76.50mm (3.01 in) |
Weight: | 0.26Kg (0.57 lb) |
- The Signal Module provides 4 x digital or analog input / output channels.
Model | Raymarine YachtSense Signal Module |
Power Specifications | |
Nominal supply voltage: | 12 Vdc / 24 Vdc |
Operating voltage range: | 8 Vdc to 32 Vdc |
Maximum output current: | 1 A (250 mA per channel) |
Data Connections | |
Signal connections: | 4 Channels 0-32V/4-20mA/0-1500Ohm/Digital+/Digital- Input or up to 250mA signal Output |
Physical | |
Module Dimensions: H/W/D (not including busbars): | 172mm (6.77 in) x 28.00mm (1.10 in) x 76.50mm (3.01 in) |
Weight: | 0.22Kg (0.49 lb) |
- The Reverse Power Module provides 1x 20 A bidirectional channel.
Model | Raymarine YachtSense Reverse Power Module |
Power Specifications | |
Nominal supply voltage: | 12 Vdc / 24 Vdc |
Operating voltage range: | 8 Vdc to 32 Vdc |
Maximum output current: | 20 A |
Physical | |
Module Dimensions: H/W/D (not including busbars): | 160mm (6.30 in) x 28.00mm (1.10 in) x 76.50mm (3.01 in) |
Weight: | 0.26Kg (0.57 lb) |
- The Power Supply Module is supplied when purchasing a Master or Remote Module.
- The Power Supply Module is connected on the end of the Master or Remote systems.
- The Power Supply Module connects to the vessel's power supply and provides power to the DCS.
Model | Raymarine YachtSense Power Supply Module |
Power Specifications | |
Nominal supply voltage: | 12 Vdc / 24 Vdc |
Operating voltage range: | 8 Vdc to 32 Vdc |
Fuse / circuit breaker rating: | 100 A maximum |
Maximum current draw: | 100 A |
Connections | |
Power supply connection: | Positive and negative M6 threaded studs |
Physical | |
Module Dimensions: H/W/D (not including busbars): | 155mm (6.10 in) x 47.00mm (1.85 in) x 77.50mm (3.05 in) |
Weight: | 0.30Kg (0.66 lb) |
Model | Raymarine YachtSense Full System |
Power Specifications | |
Nominal supply voltage: | 12 Vdc / 24 Vdc |
Operating voltage range: | 8 Vdc to 32 Vdc |
Maximum output current: | 100 A per Master / Remote unit |
Environmental | |
Operating temperature range: | -25°C (-13°F) to 55°C (131°F) |
Storage temperature range: | -30°C (-22°F) to 70°C (158°F) |
Humidity: | up to 93% @ 40°C |
Water ingress protection: | IPx6 |
