Raymarine i50 Instrument Display
$ 428.86 – $ 831.86
The compact and powerful Raymarine i50 Instrument Display offers boaters with a simple, easy to read display. The extra-large digits and red back lighting makes it easy to read in both day and night conditions.
Raymarine i50 Instrument Display
The i50 instruments are designed to complement Raymarine's latest generation multifunction displays. These stylish, dedicated-function instruments are the perfect solution for smaller power boats, yachts and RIBs. The i50 range consists of 3 digital displays: speed and depth displays with extra-large digits and a multi-line tridata unit. With excellent viewing angles for both day and night conditions and simple, push-button controls make the i50 instruments extremely easy to see and use. They are also easy to install thanks to the front-mount design.
Choose from three i50 Instrument Displays:

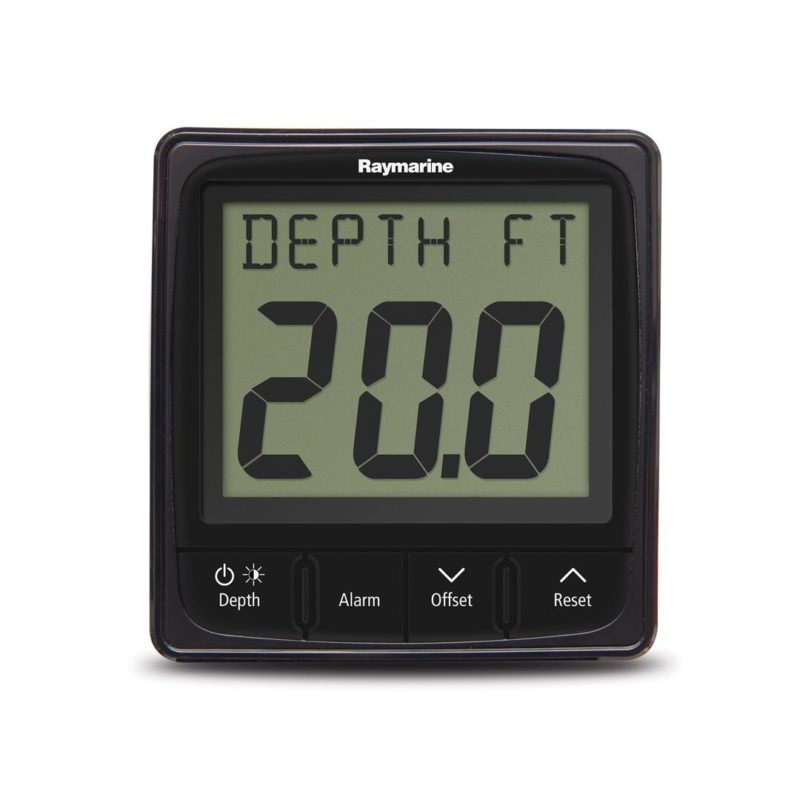

i50 Depth
The i50 Depth, with its large digits, provide boaters a clear depth readout. Includes depth trend indicator, minimum and maximum depth, and audible shallow, anchor and deep alarms.

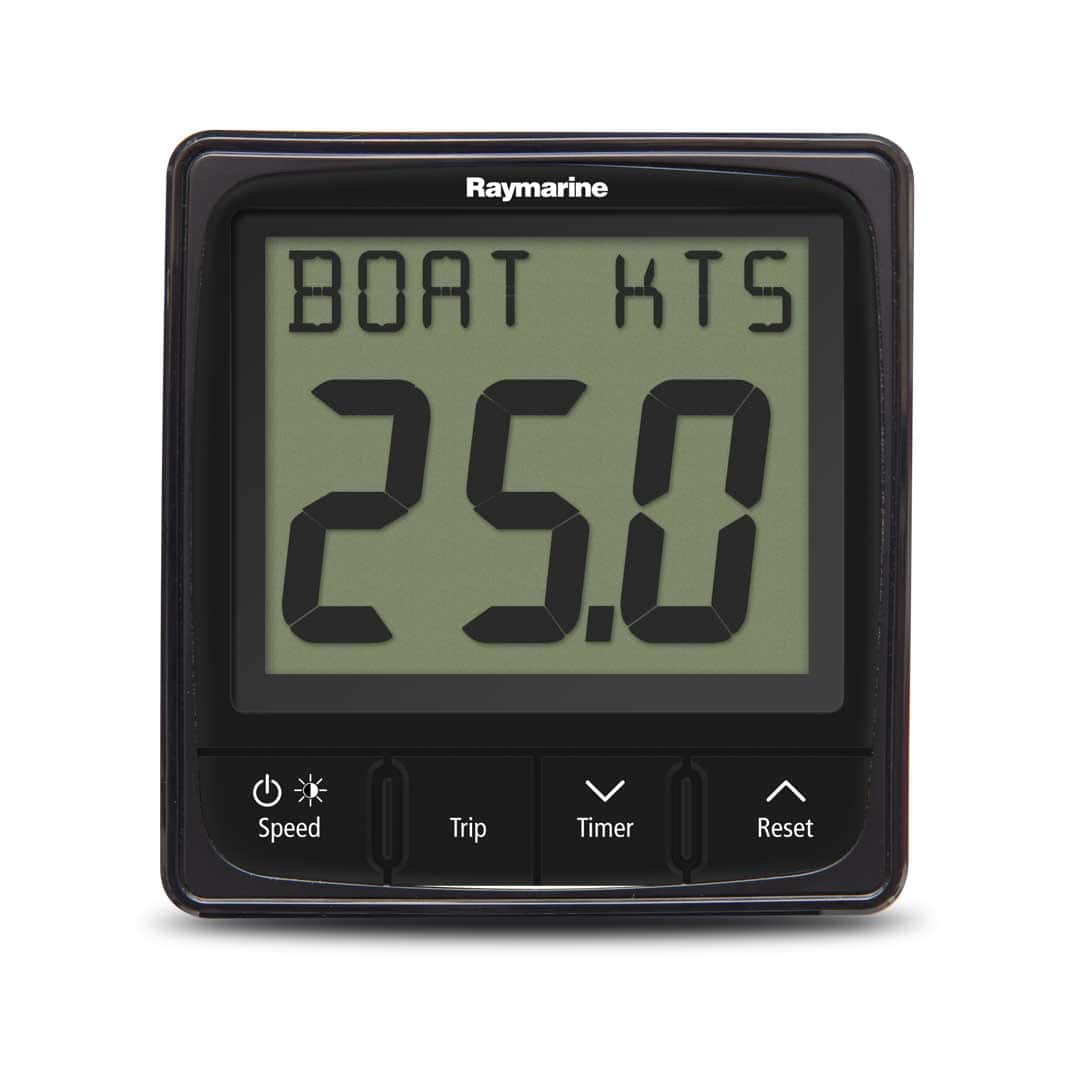

i50 Speed
Shows Speed Through Water or Speed Over Ground (GPS required), sea surface temperature, and trip and log data.

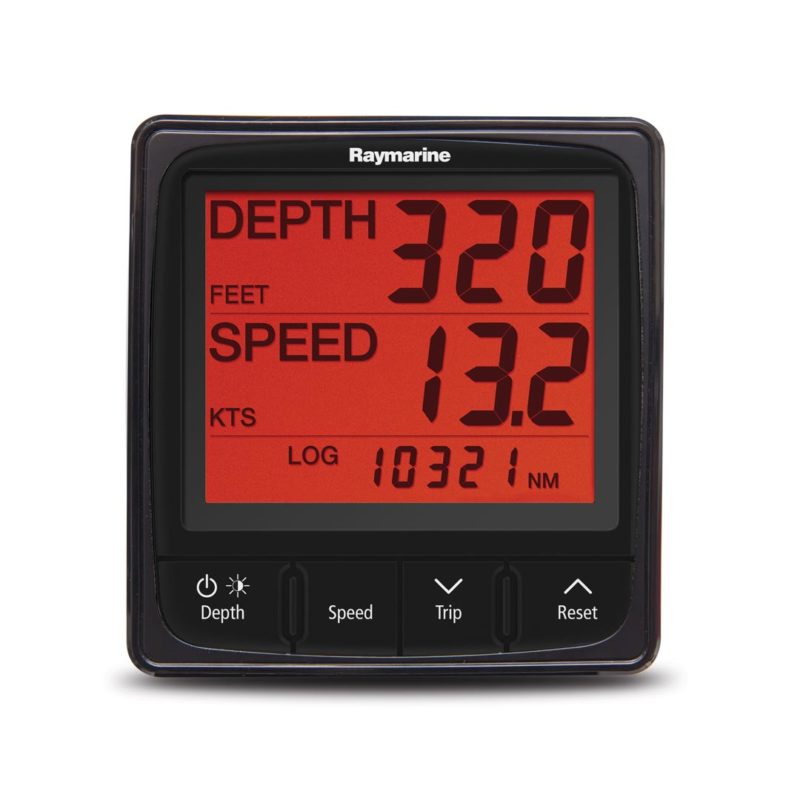

i50 Tridata
The i50 combines depth and speed data to an easy to read 3-line display. Apart from the speed and depth data, the i50 Tridata can display trip/log, sea temperature and Speed Over Ground details.
Raymarine i50 Instrument Display features
- Large numerals and digits
- Red back lighting for enhanced night time visibility
- SeaTalk and SeaTalkng interface
- NMEA2000 (compatible) interface
- Built-in transducer interface
- 110mm x 115mm footprint
- Low power consumption
- Multiple data source support eliminates potential data conflicts
- Front mounted design for simple installation
TECHNICAL DETAILS
MODEL | RAYMARINE i50 |
Dimensions |  |
Nominal voltage | 12V DC |
Operating voltage range | 10 - 16V DC |
Power consumption | Typically <1W (display only) and 2.4W maximum with transducer connected |
Current consumption | 45 to 65mA (display only) and 200mA maximum with transducer connected |
Operating temperature range | -20ºC to +55ºC |
Storage temperature | -30ºC to +70ºC |
Relative humidity | Up to 93% |
Waterproofing standard | IPX6 |
Connections | 2 x SeaTalkng and transducers Compatible with marine industry CAN systems |
Conformance | Europe 2004/108/EC |
