Marine Data MD74RDI Digital Rudder Angle Indicator

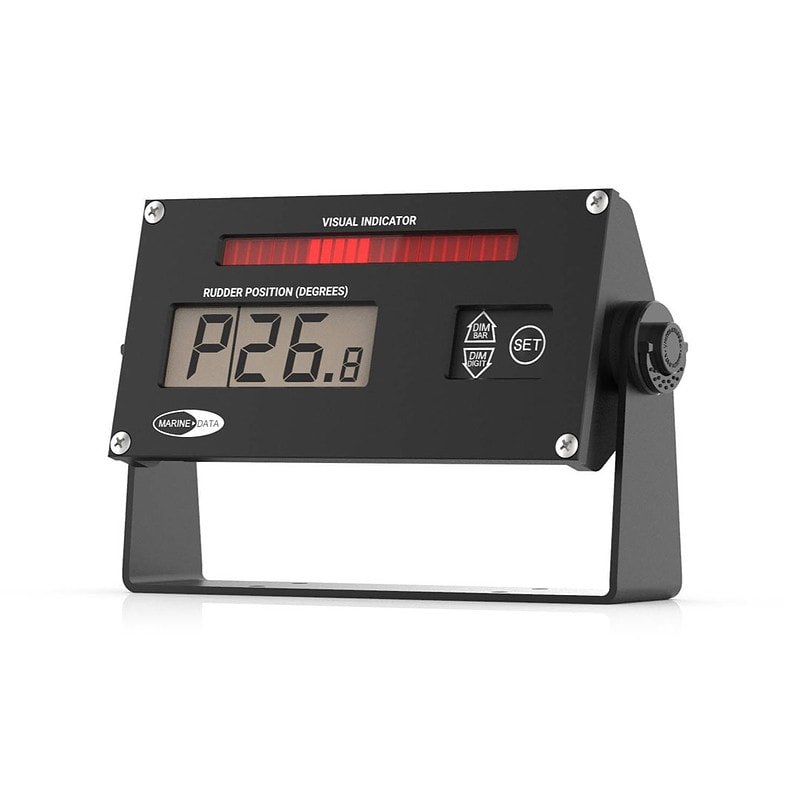

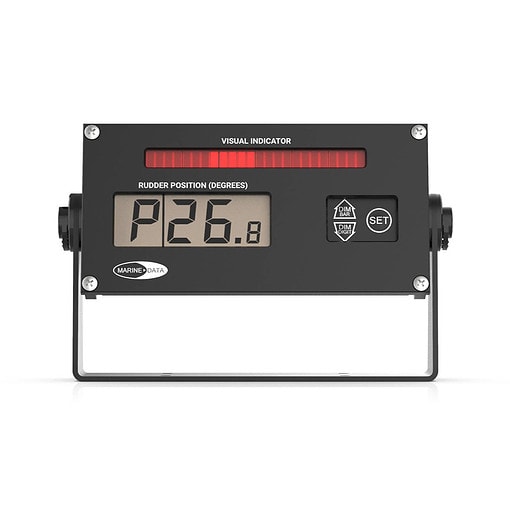

The MD74RDI is a four digit digital Rudder Angle Indicator which accepts NMEA 0183 input, and is accurate to a resolution 0.1°. It features a bar LED indicator to show Port or Starboard manoeuvres, along with 3 touch membrane buttons for setup. The Rudder Angle Indicator can be panel mounted (kit included) or bulkhead mounted with an optional adjustable Trunnion Bracket. Internal components are housed within a robust aluminium enclosure, finished in Jet Black (RAL9005) Fine-texture Powder Coat to complement existing marine equipment. Compact and rugged, the MD74RDI offers a Rudder Angle Indicator solution for locations where available space is limited and allows digital Rudder Angle data to be conveniently displayed at any location on a vessel. The MD74RDI Rudder Angle Indicator from Marine Data: flexible in application, easy to install and simple to maintain.

Applications

• Displays Rudder Sensor Angle Data transmitted from NMEA 0183 (IEC 61162-1) compatible equipment
