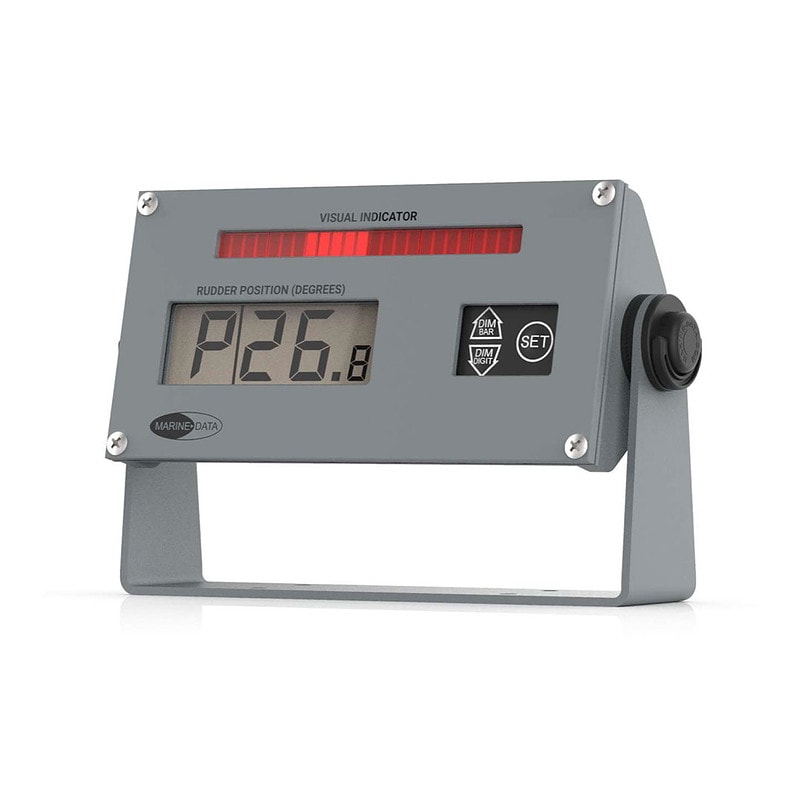

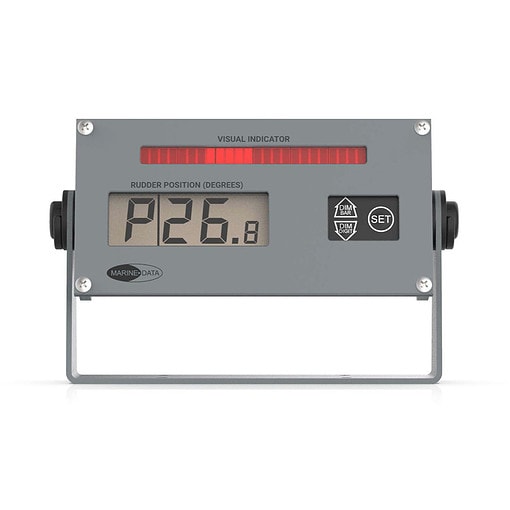

Marine Data MD74RDI/W Weatherproof Digital Rudder Angle Indicator
The MD74RDI/W is a weatherproof four digit digital Rudder Angle Indicator which accepts NMEA 0183 input, and is accurate to a resolution 0.1°. It also features a visual bar LED indicator to show rudder angle, along with 3 touch membrane buttons for setup.Features
- Large Format LCD Digital Display to 0.1°
- Visual LED Bar indicator which shows Rudder Angle
- NMEA 0183 Digital Input
- Local and Remote Dimming Control Compatible
- Panel Mounted or optional Bulkhead Mount
- Fully sealed to IEC 60945 Exposed Area Classification
- Wheelmark Approved when installed as part of a Marine Data Rudder Angle Indication System

Applications
- Displays Rudder Sensor Angle Data transmitted from NMEA 0183 (IEC 61162-1) compatible equipment
